High Frequency
Battery Charger
POWER-SWITCH represents the whole range of high-frequency battery chargers (single-phase, single-phase with PFC, three-phase, three-phase with pump), completely developed by our technical office. They are suitable to charge both wet and sealed GEL or AGM lead-acid batteries, with capacity from 30Ah to 2800Ah. The recharge time varies from 6.5 hours to 13 hours. The recharge cycle occurs correctly even in presence of wide fluctuations of the mains voltage.
All devices can be also installed on-board, they are fully programmable and endowed of data memory systems to keep under control the energy package conditions of use (battery and battery charger).
POWER-SWITCH is the right choice:
- When a high energetic efficiency is needed to limit recharge costs.
- When electric power costs employed in recharge rooms have to be reduced.
- When it is important to limit stocks in stores and to satisfy all market needs through the use of few models.
- When high-frequency technology is required, but there is a tight budget.
- When shipping costs have to be reduced.
- When an air freight is needed.
- When there are wide fluctuations of the mains voltage.
- When the battery charger has to be installed on-board.
- When the working environment is safe and decently clean.
Tips for a correct use:
- To hang the device on the wall, together with its own ABS roof (where it is included).
- Not to leave them in the water, in such cases LADE-LIGHT series should be preferred.
- Not to use them in very dirty environments, in such cases EFFICIENT DATA MEMORY or LADE-LIGHT series should be preferred.
MP TOP II programmer for POWER SWITCH battery chargers
This high-tech device, recommaned to distributors and after sale service centers, is necessary to set up and to download the data memory of POWER-SWITCH, MGX and EFFICIENT DATA MEMORY battery chargers.
The kit includes the programmer, cables to connect it to the charger and to the PC. The SW to be installed on your PC is also supplied.
The normal operation is guaranteed by the internal lithium battery, thus no other power source is necessary. The battery is completely recharged by leaving the programmer connected to the USB port of your PC.
PSW programming
with MPTOP II
PSW data reading
with MPTOP II

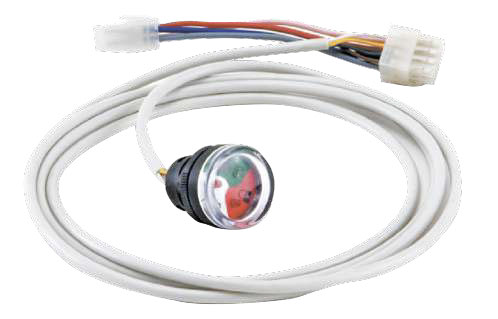

VISLED
Remote display for high frequency battery charger,
POWER-SWITCH series
REMOTE CONTROL VIEWER
It is possible to provide, on demand, an additional external display, if the battery charger is installed on board the vehicle and the original LEDs are not visible. You can simply connect to the battery charger without any installation procedure (plug-and-play). The shown information are the following: battery charging (red LED), battery charged (green LED), protection block for overly discharged batteries (red LED). Complete with cable (2m) and it requires a 16mm diameter hole for installation.
Code: VISLED.1
Battery Connectors
Battery Connectors
APP ANDERSON – SCHALTBAU – EURODIN series
Power plugs
Mains power plugs.
Monophasic and Threephasic models
16/32 A 3/4/5 poles
