High-frequency three-phase and single-phase battery chargers
LADE LIGHT represents the most innovative and exclusive integrated solution for the recharge and management of traction batteries, especially recommended for medium-large sized fleets of forklifts.
Unique features making LADE LIGHT a successful solution can be summed up in three points:
- It allows to extend the batteries warranty for the whole duration of the forklifts rental contract.
- It allows for energetic savings above 20% compared to the use of standard high frequency battery chargers.
- It allows to use high frequency battery chargers in dirty or open-air environments, where they are directly exposed to weather conditions.
TECHNICAL INFORMATION
- Batteries with a capacity between 200Ah and 2.000Ah.
- Batteries with different technologies:
- Wet lead-acid, recharging in 8 - 11 -13 hours
- Wet lead-acid suitable for ultra-rapid charging (“opportunity charge”): optionally, a temperature sensor can be installed on the battery
- GEL or AGM lead
- lithium-ion
- any other chemistry
ADVANTAGES
- Savings due to fewer chargers installed: it is no longer necessary to have a charger for each battery*.
- Savings in operator time: no need to search for the charger associated with each truck, but each truck can be connected to any available charger.
- Optimisation of operator time by placing several charging stations inside the logistics platform (even outside using the IP55 box variant).
- Longer battery life by using a charging cycle dedicated to each battery (the charging cycle is installed directly on the ID-BATT).
- Compliance with INDUSTRY 4.0 and 5.0 directives: more than just charging. In addition to integrating with corporate IT systems via RS485 interface, the LLS2 series chargers reflect a commitment that goes far beyond simple charging: we protect your investments and the environment. We offer durable, high-performance, and energy-efficient solutions, created through an ethical and transparent supply chain. Thanks to always guaranteed repairability, we extend the product’s life cycle, drastically reducing the production of electronic waste (e-waste).

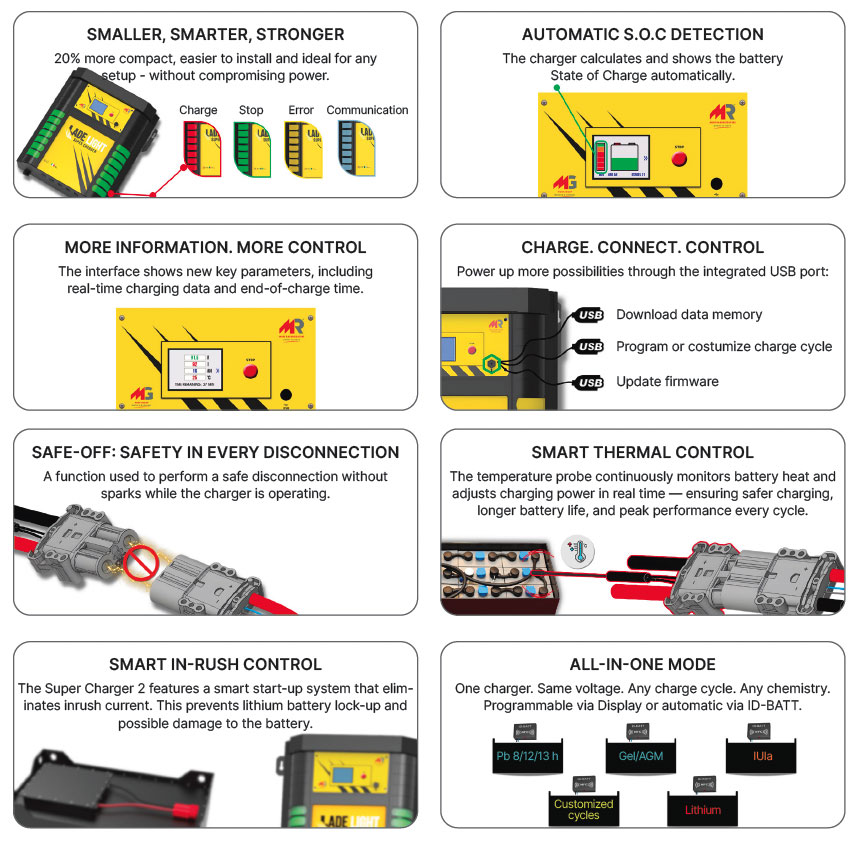

PLUS
LLS2 indoor
LLS IP55 outdoor
Accessories
Download
Battery identification device – mod. ID-batt
Allows the individual battery to be identified, assigning it a charging cycle dedicated and specific.
Sizes: 40 x 30 x h 21 mm, Weight: 94 g
TECHNICAL INFORMATION
- To install on every battery in the fleet.
- Fully sealed and acid-resistant solution.
- Inside is a thermal probe.
- It can be programmed for any battery with a nominal voltage between 24Volt and 96Volt and any capacity.
- The up-loading of the charge cycle will take place via a smart-phone (ANDROID) using NFC technology.
- The app, which can be installed on a smartphone, will include a library of selectable charging cycles. Additional custom cycles can be generated on a PC using the Power Suite software and then transferred to the smartphone.
- ID-BATT can be reprogrammed at any time.
- When you connect the battery to the charger, the ID-BATT will transfer the charge cycle to the charger.
IMPORTANT: should any communication issues arise, the ‘manual charge cycle selection’ option will be available on the charger’s display to ensure that charging can still take place. - It communicates with all chargers in the LLS LADE-LIGHT SUPERCHARGER series.
Battery identification device – mod. ID-batt CAN
Allows the individual battery to be identified, assigning it a charging cycle dedicated and specific.
This version is able to communicate with lithium battery BMSs via a suitable CAN BUS protocol, then transfer the appropriate information received from the battery, to the charger.
TECHNICAL INFORMATION
- To install on every battery in the fleet.
- Fully sealed and acid-resistant solution.
- Inside is a thermal probe.
- It can be programmed for any battery with a nominal voltage between 24Volt and 96Volt and any capacity.
- The up-loading of the charge cycle will take place via a smart-phone (ANDROID) using NFC technology.
- The app, which can be installed on a smartphone, will include a library of selectable charging cycles. Additional custom cycles can be generated on a PC using the Power Suite software and then transferred to the smartphone.
- ID-BATT can be reprogrammed at any time.
- When you connect the battery to the charger, the ID-BATT will transfer the charge cycle to the charger.
IMPORTANT: should any communication issues arise, the ‘manual charge cycle selection’ option will be available on the charger’s display to ensure that charging can still take place. - It communicates with all chargers in the LLS LADE-LIGHT SUPERCHARGER series.
Battery identification device – mod. ID-batt.2
Allows the individual battery to be identified, assigning it a charging cycle dedicated and specific.
Device with external thermal probe
TECHNICAL INFORMATION
- To install on every battery in the fleet.
- Fully sealed and acid-resistant solution.
- Inside is a thermal probe.
- It can be programmed for any battery with a nominal voltage between 24Volt and 96Volt and any capacity.
- The up-loading of the charge cycle will take place via a smart-phone (ANDROID) using NFC technology.
- The app, which can be installed on a smartphone, will include a library of selectable charging cycles. Additional custom cycles can be generated on a PC using the Power Suite software and then transferred to the smartphone.
- ID-BATT can be reprogrammed at any time.
- When you connect the battery to the charger, the ID-BATT will transfer the charge cycle to the charger.
IMPORTANT: should any communication issues arise, the ‘manual charge cycle selection’ option will be available on the charger’s display to ensure that charging can still take place. - It communicates with all chargers in the LLS LADE-LIGHT SUPERCHARGER series.
App ID-batt
The ID-batt app offers an advanced control interface for managing charging parameters and curves.
“POWER SUITE” software to install on the PC
with four specific functions:
- Generate charging profiles.
- Program t he ID-BATT.
- View and manage data memories on the chargers.
- Firmware update of LADE LIGHT super chargers.
SPY BATT BATTERY TUTOR DEVICE
A testing device to be installed on the battery
TECHNICAL INFORMATION
- It has to be installed on the battery.
- It keeps all battery parameters under control: tension, discharge current, capacity, temperature, electrolyte level.
- It stores all parameters for 5 year battery usage.
- It allows to adapt the charge cycle and specific management of each single battery in the fleet.
- Data transmission occurs by connecting the battery endowed of SPYBATT to the LADE LIGHT battery charger, for the daily recharge.
- Batteries endowed of SPYBATT can be connected to any LADE LIGHT charger in the recharge room (see the table).
